Reduction of CO2 Emission

By improving productivity and managing energy use well, we can contribute to the reduction of CO2 emissions themselves. In particular, the amount of CO2 released into the atmosphere can be significantly reduced by separating and capturing CO2 generated during combustion processes such as manufacturing and power generation. HORIBA's wide range of "measurement" solutions such as gas measurement, material analysis, energy management and services can also contribute to CO2 reduction through CO2 separation and capture during product manufacturing and reduction of material and electric power consumption.

Table of Contents


Reduction of CO2 Emissions through Separation and Capture

CO2 Separation and Capture in Combustion Processes

CO2 is separated and captured from the exhaust gas generated in the combustion process. This is the CC (Carbon dioxide Capture) part of CCUS (Carbon dioxide Capture, Utilization and Storage). From the standpoint of cost and technique, the "chemical absorption method" is considered advantageous for thermal power plants, the "physical adsorption method" for chemical plants, and the "membrane separation method" for cement and steel plants.

The separated and captured CO2 is also utilized in the carbon recycling process. For more information on carbon recycling solutions, please visit here.

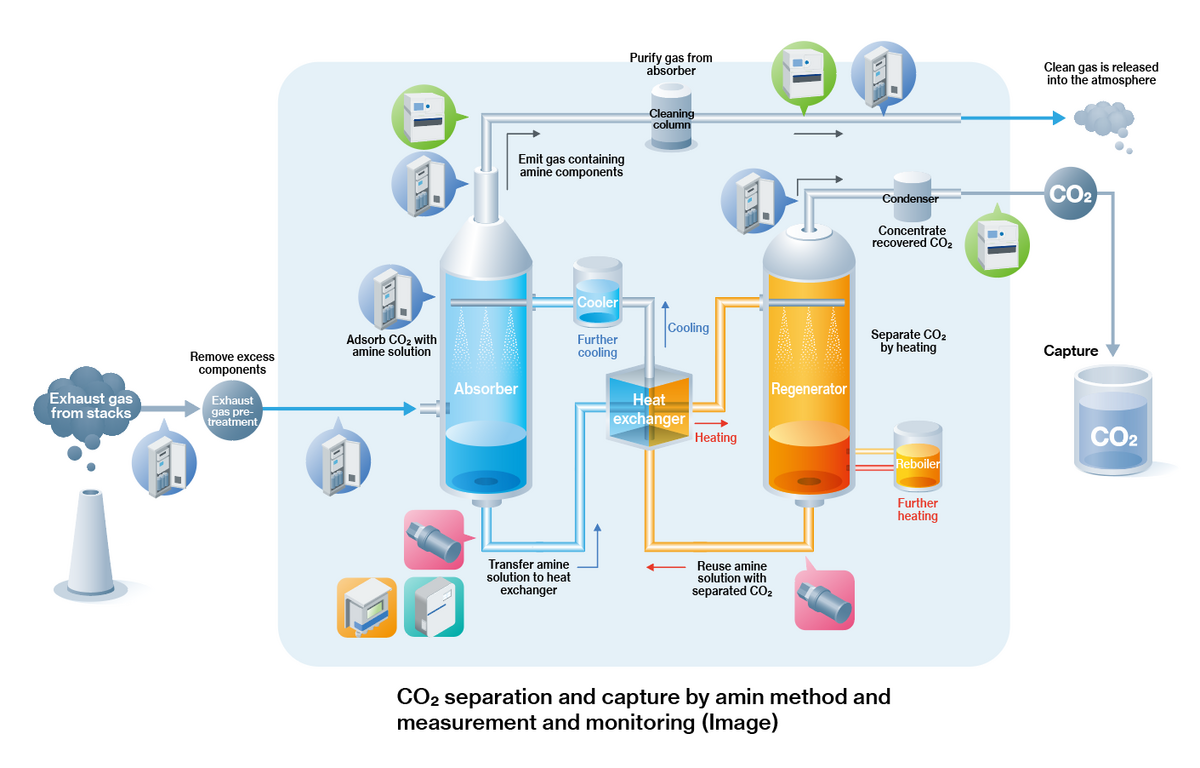

1. Chemical Absorption Method (Amine Method)
To produce high-quality CO2, it is important to measure and monitor CO2 and impurity gases in the separation, capture, and purification processes, as well as in pre and post treatment.

Pretreatment: Generally, sulfuric gases contained in flue gas are removed by desulfurization. SO2 gas needs to be measured and monitored during desulfurization, and CO2 gas needs to be measured and monitored after desulfurization.
Separation, Capture, and Purification: In the amine process, monitoring whether CO2 reacts with amines in the absorption column and is captured is necessary for optimal plant control. This is accomplished by measuring and monitoring the CO2 gas. Measurement and monitoring of the pH and conductivity of the amine solution is also required for stable process operation.
Post-treatment: The amount of CO2 adsorbed can be confirmed by measuring the solution after adsorption with a TOC meter. It is also possible to determine CO2 separation by measuring the solution itself after the CO2 separation process. In addition, the unwanted gas after CO2 removal needs to be treated, and the exhaust gas must be measured and monitored to confirm that it achieves a level at which it can be finally emitted from the chimney.

HORIBA Solutions >>
Various measurements and monitorings in the amine method
For high concentration gas monitoring: Multi-Component Gas Analyzer VA-5000, Stack Gas Analysis System ENDA-5000
For ammonia and amine concentration measurement: Ambient Ammonium Monitor APNA-370/CU-2
For quick state check of amine solution: pH, Conductivity: Water Quality Analyzer H-1 Series
For detailed condition check of amine solution: Raman Fiber Probes
For evaluation of CO2 separation and capture of amine solutions: On-line TOC Analyzer T1 Series

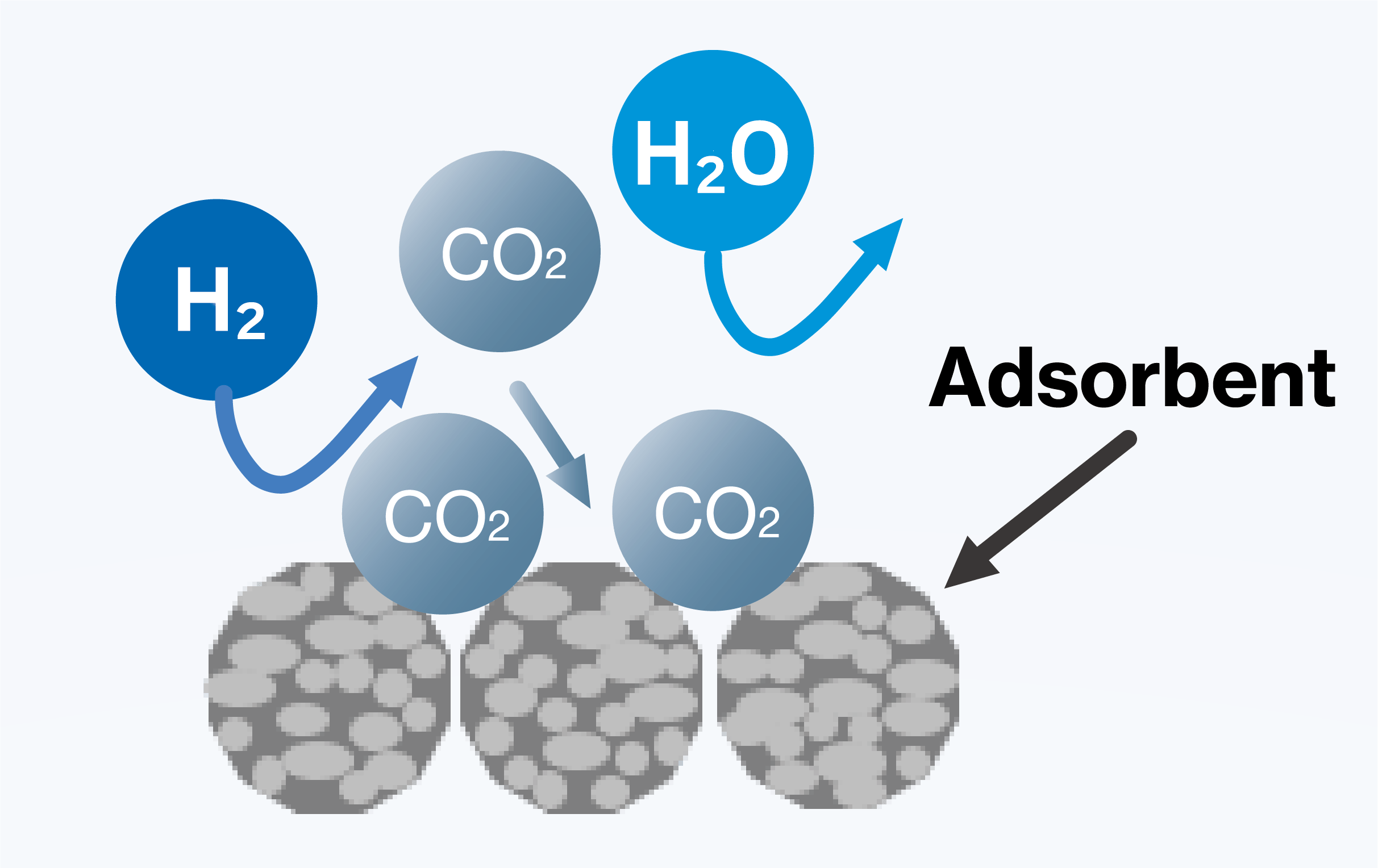

2. Physisorption Method

By observing adsorption and other state changes that occur on the zeolite surface using a Raman microscope that captures the bonding state of substances, you can evaluate the performance and degradation of the adsorbents.



HORIBA Solution >>
For Adsorbent Evaluation: Raman Microscope XploRA PLUS

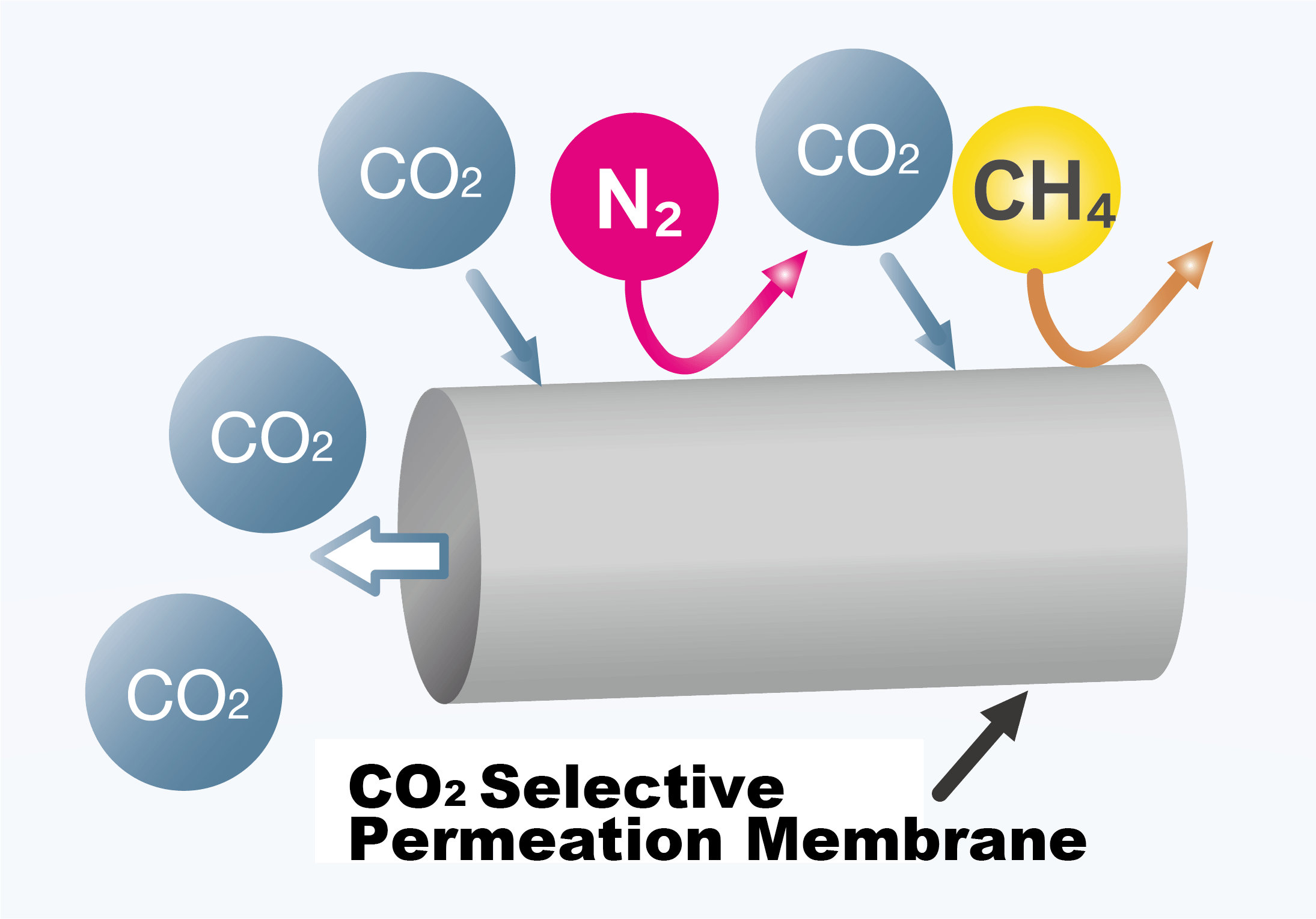

3. Membrane Separation Method

The reaction efficiency and replacement cycle of the membrane can be predicted by measuring the amount of carbon attached to the separation membrane and the amount of sulfur in the catalyst after the reaction to evaluate their degree of degradation.



HORIBA Solution >>
For evaluation of membrane reaction efficiency and replacement period: Carbon/Sulfur Analyzer EMIA-Step

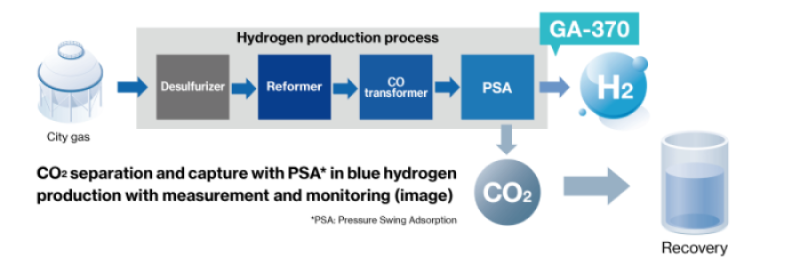

CO2 Separation and Capture in the Blue Hydrogen Production Process

By separating and capturing the CO2 generated in the production of coal- and natural gas-based "gray" hydrogen, the "blue" hydrogen is produced with no CO2 emissions into the atmosphere during production. We also contribute to blue hydrogen production with solutions cultivated in CO2 separation and capture in the combustion process.

HORIBA Solution >>
For quality control of hydrogen gas production: Trace Gas Analyzer GA-370

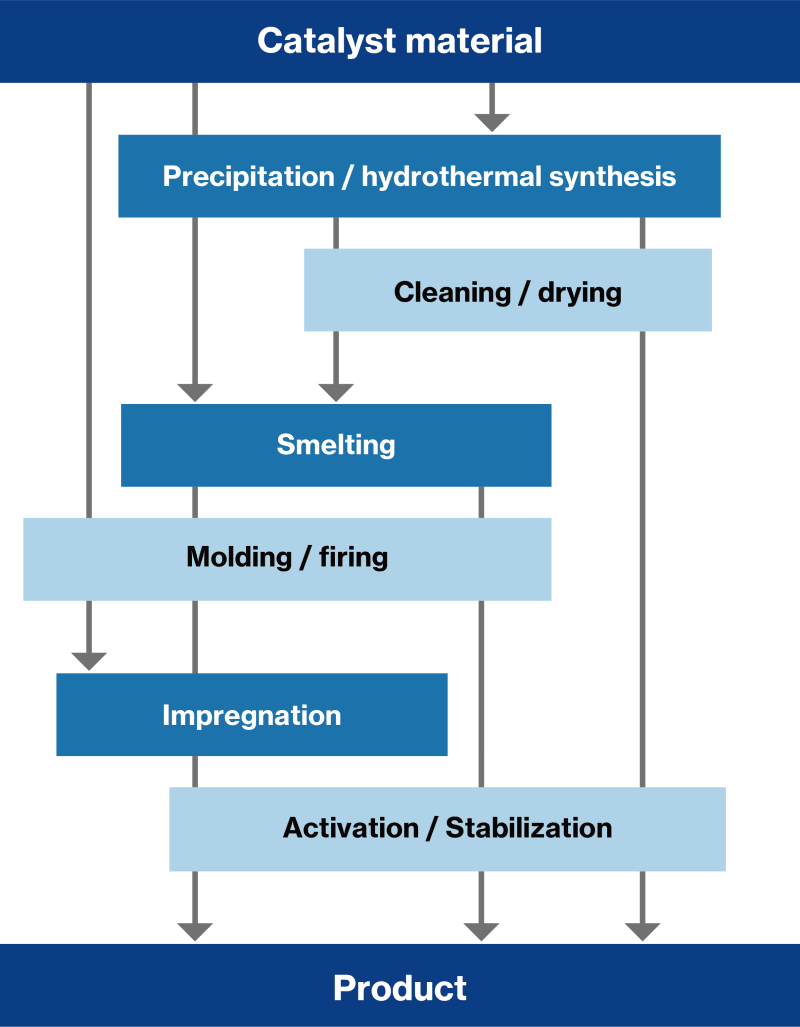

Evaluation of Sorbents, Adsorbents, and Catalysts

By structuring a simulated environment of simulated gases and temperatures to be supplied to samples such as catalysts, we realize comprehensive performance tests and evaluations. We also support your R&D and manufacturing processes with a variety of analysis, measurement and testing technologies, especially in the "production" and " utilization" of catalysts.

HORIBA Solution >>

Please contact us for further information.

Reduction of CO2 emissions by reducing materials used and electricity

Off-gas Reduction at Petrochemical Plants and Refineries

In production processes unutilized gases called "off-gases" are often generated besides final products. Off-gases that cannot be utilized throughout the process are incinerated in flare stacks, which causes an increase in CO2 emissions.
Improving productivity by reducing the amount of off-gas through the use of highly accurate process gas measurement techniques contributes to save both production materials and reduce CO2 emissions.

HORIBA Solution >>
Real-time measurement of low-concentration impurity gases with high sensitivity and speed
The amount of off-gas can be reduced by measuring low-concentration impurity gases (e.g., methane, ethane, acetylene, etc.) contained in high-concentration raw gas, with high sensitivity, high speed, and in real time, and feeding back the results to the production control system.

Process Lazer Gas Analyzer PLGA-1000


Improving efficiency and optimization of energy use

Environmental impact assessment through Life Cycle Assessment (LCA) and other methods has become increasingly important in order to achieve carbon neutrality, which is being implemented through various measures in countries around the world. In this context, there is an urgent need to reduce CO2 emissions through the efficient use of energy.

For more information on LCA, please visit Environmental Impact Assessment (LCA and GHG Protocol) page.

HORIBA Solution >>

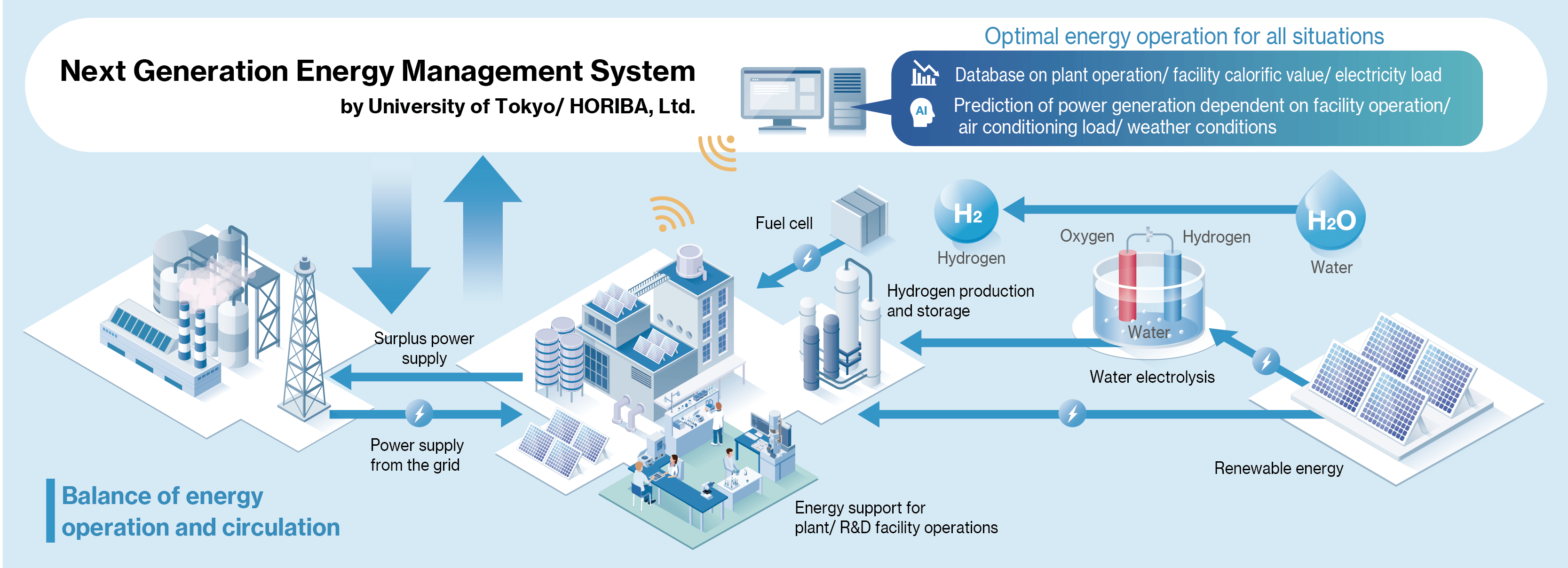

Visualization of energy use in laboratories and factories (Energy Management System)
To achieve carbon neutrality, visualization and management of CO2 emissions and energy use in the life cycle assessment (LCA) of products, including the supply chain, are drawing attention. For details, please refer to the "Energy Management System (EMS)" page.


Engineering Support

Consultation for Analysis and Contract Analysis Services

We have a long-standing commitment to analysis and evaluation of advanced materials. Your sample is measured by a highly-trained member of our Application Centers and presented as a formal report complete with method, observations, results and data interpretation assistance.

In addition to consultation on the selection of analytical instruments, we also provide analytical technologies through services such as contract analysis and joint research with customers and academia, utilizing our know-how and skills as an analytical instrument manufacturer.

Analysis Centers and Services


Direct Carbon Capture

Achieve negative emissions through capturing CO2 in the ambient air and CO2 from biomass combustion with DAC and BECCS

Carbon Recycling

Effectively utilize CO2 and waste plastics as chemicals, fuel, various materials or thermal energy

Carbon Capture and Utilization TOP

Contribute to various processes for recovering CO2 from its source and effectively utilizing it as a resource with our "measurement" technology
